Api 11ax Casing Tubing Pump Downhole Parts Piston Type Diameter 3-3/4 In Plunger

Product Categories
Puyang Zhongshi Group Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Api 11ax Casing Tubing Pump Downhole Parts Piston Type Diameter 3-3/4 In Plunger

  • 1
  • 2

Brand Name : Zhongshi

Model Number : ZS

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 10000pcs/month

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Advantage : High Performance

Barrel Coating : Chrome plating

Coating : Chrome plating

Material : Stainless Steel

Connection : Welding

Heat Resistance : Yes

Coating Type : Spray metal

Feature : Anti-corrosion

Barrel Structure : Stationary

Power : Machanical energy

Parts Code : P

Weight : 20tons

Type : Pump Parts

Condition : New

Length : Standard or as requirements

Contact Now

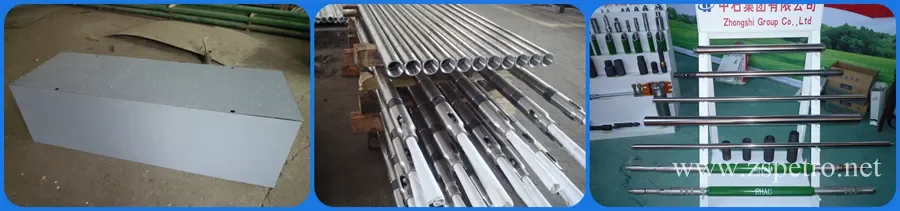

Double Chrome Plating Pump Plungers Oilfield Pump Parts

Double Chrome Plating Pump Plunger Description:

The technology for the plungers: Besides the Spray Metal Plunger, there also is the chrome plated plungers. Chrome plating technology has normal chrome plating and the double chrome plating.

API code for the different plungers: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double

chrome plating (A2).

Pump plungers technical parameters

Code Model No. API No. Explains
P21A P21A-106(XX)-L P21-106 Plunger, Pin End,
One Piece
P21A-125(XX)-L P21-125
P21A-150(XX)-L P21-150
P21A-175(XX)-L P21-175
P21A-200(XX)-L P21-200
P21A-225(XX)-L P21-225
P21A-250(XX)-L P21-250
P21I P21I-106(XX)-L P21-106 Plunger, Pin End,
One Piece, inclined plane
P21I-125(XX)-L P21-125
P21I-150(XX)-L P21-150
P21I-175(XX)-L P21-175
P21I-200(XX)-L P21-200
P21I-225(XX)-L P21-225
P21I-250(XX)-L P21-250
P21I-275(XX)-L P21-275
P21I-325(XX)-L —
P21I-375(XX)-L P21-375
P22 P22-125(XX)-L P22-125 Plunger,
Assembled
P22-150(XX)-L P22-150
P22-175(XX)-L P22-175
P22-200(XX)-L P22-200
P22-225(XX)-L P22-225
P22-250(XX)-L P22-250
P22-275(XX)-L P22-275
P23 P23-175(XX)-L P23-175 Plunger,
Box End
P23-225(XX)-L P23-225
P23-275(XX)-L P23-275
P23-375(XX)-L P23-375
